P1000X5

Punch 1,000 Watt Class-bd 5-Channel Amplifier P1000X5

The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.

Read More
1 Review
$699.99
+
Overview

The P1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.

  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
  • 2/4 channel input switch
  • 1 Year Warranty
Technologies
CEA-2006 Compliant
CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's ...

Learn more
x
CEA-2006 Compliant
CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

CE Compliant
CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 ...

Learn more
x
CE Compliant
CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

Class BD
Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

Learn more
x
Class BD
Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

TRANS&#149;<em>ana</em>
TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the ...

Learn more
x
TRANS&#149;<em>ana</em>
TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs
Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

Learn more
x
Balanced Differential Inputs
Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

DTM
DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

Learn more
x
DTM
DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

DSM
DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and ...

Learn more
x
DSM
DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

MEHSA<sup>3</sup>
MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

Learn more
x
MEHSA<sup>3</sup>
MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD
NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and ...

Learn more
x
NOMAD
NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

Engineered In The USA
Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered ...

Learn more
x
Engineered In The USA
Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

C.L.E.A.N. Set-Up
C.L.E.A.N. Set-Up

Patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Learn more
x
C.L.E.A.N. Set-Up
C.L.E.A.N. Set-Up

Patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Number of Channels
5
Bridgeable
Yes (front/rear channels)
Tone Controls
Sub:
0dB to +18dB @ 45Hz
Signal Output
-
Power Input Connector
Block
Power Wire Gauge
4 AWG
Speaker Output Connector
Block
Speaker Wire Gauge
12 AWG
Dimensions (H x W x D)
2.38 x 7.76 x 15.03 (in)
6.05 x 19.71 x 38.18 (cm)
Shipping Weight
15.3 Lbs. (6.93 Kg.)
Efficiency (average)
Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
<1.0%
Average Current Draw (13.8V Music)
75 A
Max. Current Draw (13.8V Sinewave)
150 A
Operating Voltage
9 - 16 VDC
Suggested Alternator
100 A
Input Sensitivity
150 mV - 12 V
Rated Power
(RMS Continuous Power)
75 Watts x 4 +
150 Watts x 1 @ 4-Ohm

125 Watts x 4 +
300 Watts x 1 @ 2-Ohm

N/A +
500 Watts @ 1-Ohm
Crossover Controls
Front: 50Hz - 250Hz High-Pass @ 12dB/Octave
Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
Sub: 50Hz - 250Hz Low-Pass
Sub: 28Hz infrasonic filter @ 12dB/Octave
Signal Input
Input Switch: Hi/Low level input
Input Switch: 2/4 channel input
Hi/Low Level: 3 RCA Pair
Sub: front/sub input switch
Heat Sink Type
Cast
Cooling
Convection
Remote Controls
Optional Punch Level Control (PLC2) Ready
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Circuit Topology Class
Class A/B + Class BD (Sub)
Frequency Response
Front/Rear: 20Hz - 20kHz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Dynamic Power
(PVC/PowerCube®)
115 Watts x 4 +
299 Watts x 1 @ 4-Ohms 0° Res

190 Watts x 4 +
540 Watts x 1 @ 2-Ohms 0° Res

N/A +
863 Watts x 1 @ 1-Ohm 0° Res
Total Power
(Sum of Rated Power)
1000 Watts
CEA-2006 Compliant
CEA-2006 Power Rating
75Wx4 + 150Wx1 @ 4Ω
≤1.0% THD+N
Dimensional Diagram
Recommended Fuse
(not included)
150 A
Common Mode Rejection
>55 dB
Damping Factor
>500
Sub: >300
Signal-to-Noise (CEA)
>85 dB
Sub: >80 dB
Channel Separation
>50 dB
Support

Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.


View Process

Accessories Wiring Wizard

Available Wiring Diagrams

Please consult your amplifier owner's manual for lowest recommended impedance.

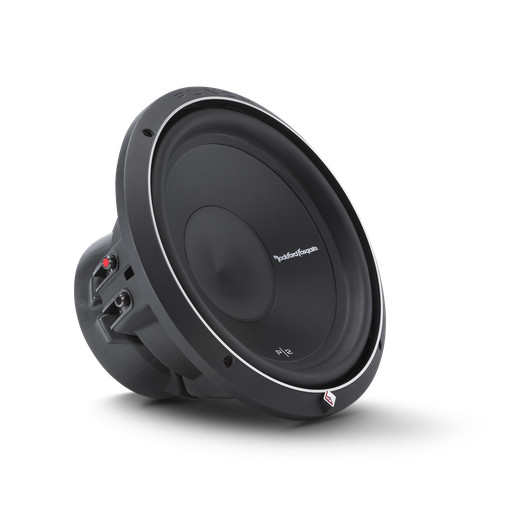

Speaker Polarity

Your woofer may use one of the following to identify (+/-) terminals.

Positive +

Red Post

Purple (4Ω)

Red (8Ω)

Negative -

Black Post

No Dot

No Dot

Speaker Polarity

Your woofer may use one of the following to identify (+/-) terminals.

Positive +

Red Post

Purple (4Ω)

Red (8Ω)

Negative -

Black Post

No Dot

No Dot

Wiring Kits

ARE YOU ENGINEERED TO ROCK?

Get a 1-Year extended amplifier warranty when using a matching Rockford Fosgate installation kit.

We want you to get the maximum performance and reliability from your Rockford Fosgate amplifier. We're so certain using the right cables make a difference, we'll give you and additional 1-Year amplifier warranty when using a matching installation kit!

  • 1 Purchase a Rockford Fosgate Punch or Power amplifier.
  • 2 Add the correct amplifier installation kit.
  • 3 Get an additional 1 year amplifier warranty FREE!

Reviews

Powerful 5 Channel Amp

This amp is hooked up to 4 6x9 components with a 10" ported sub in my 2015 Jeep Cherokee.I sent Crutchfield back a 5 channel Kicker and Alpine amp because of their lack of what I was looking 4..More power!Without sacrificing the quality of sound.I am satisfied with the P1000X5! Ray K,Michigan.
