RF-3002T-3 OEM "Ultimate" 150 - Road Glide/Batwing

RF-3002T-3
  • RF-3002T-3
  • PBR300X2
  • T3652-S
A Bagger Nation OEM "Ultimate" 150 System designed for both Road Glide and Batwing fairings.

  • PBR300X2 - Boosted Rail 2-Ch. Amplifier
  • T3652-S - 6.5" Power T3 Component System
  • Designed for "Road Glide" fairings
  • Designed for "Batwing" fairings
  • Custom Speaker Adapter Rings
  • Includes Hardware
  • Includes Amplifier Heat Sink/Mounting Plate
  • Includes Custom Wiring Harness
  • Includes Step-by-Step Instructions
Class-BR
Punch EQ2
MEHSA<sup>3</sup>
Klippel Verified
DDC™ Tweeter Mounting
VAST Surround - Speakers
IDHS™ T3 Inductive Damping Heat Sink

RF-3002T-3

This is the finest quality, most powerful 6.5" component speaker system we offer! We've paired our finest quality, award winning Power T3 component speakers with our brand new 150 watt per channel BRT300X2 amplifier! Each kit includes our exclusive hard amp mount/heat sink and complete wiring kit with step by step instructions. Everything you'll need to have the most incredibly clear sound experience even at high speeds with the volume cranked... Just the way we like it!

NOTE: Requires removal of stock air temp and oil or voltage gauge. Power T3 tweeters utilize the (2) gauge holes, or holes must be cut for tweeter install.


CEA-2006

CEA-2006

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These...
Learn more
Class-BR

Class-BR

Stores energy and dynamically boosts rail voltage to create power on demand.
Learn more
Punch EQ2

Punch EQ2

Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
Learn more
MEHSA<sup>3</sup>

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs...
Learn more
CEA-2031

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means...
Learn more
Klippel Verified

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible speakers.
Learn more

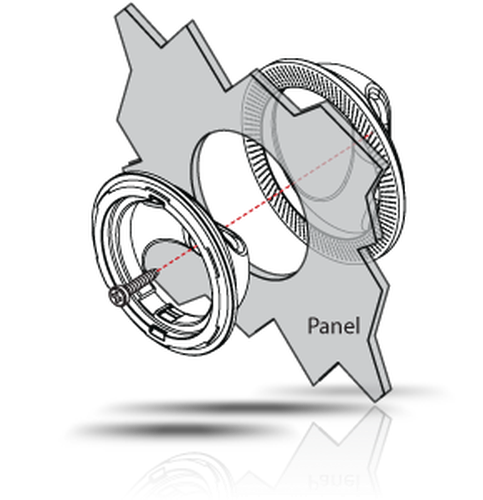

DDC™ Tweeter Mounting

DDC™ Tweeter Mounting

Our DDC™ (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the...
Learn more
VAST Surround - Speakers

VAST Surround - Speakers

The Vertical Attach Surround Technique significantly increases a speaker's effective radiating cone...
Learn more

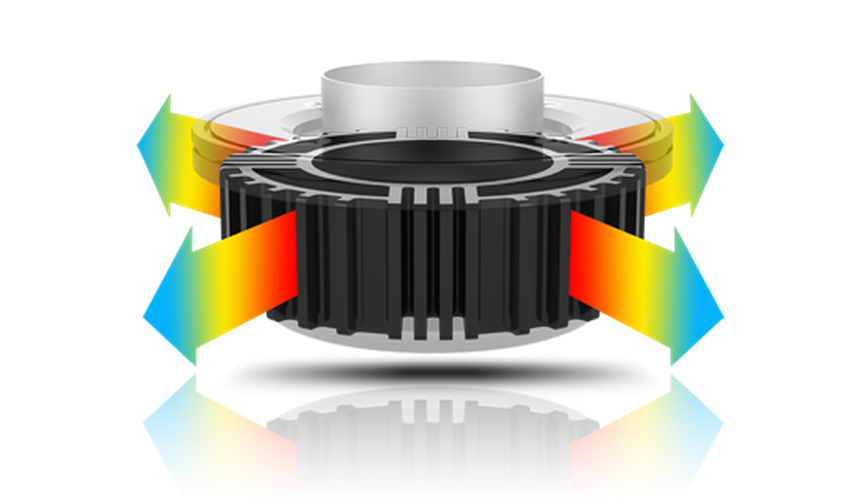

IDHS™ T3 Inductive Damping Heat Sink

IDHS™ T3 Inductive Damping Heat Sink

Secures directly to the top of magnet structure to improve system efficiency by reducing both...
Learn more
Number of Channels: 2-Channels
Number of Speakers: 4 (2 midrange + 2 tweeters)
Amplifier RMS Power: 100 Watts x 4 @ 4-Ohms
Front Tweeter Size: 1" (25mm)
Front Speaker Size: 6.5"

System Design

The OEM "Ultimate" 150 system is supplied with a 2-channel amplifier that drives a pair of 6.5" component systems. The component system utilizes a 2-way active crossover that sends high frequencies to a 1" tweeter and midrange frequencies to a 6.5" speaker.
